Plot a creel survey design — plot_design • tidycreel

Produces a quick visual summary of a creel_design object:

Without counts attached (design$counts is NULL): a bar chart showing the number of sampled days per stratum.
With counts attached: a jitter + crossbar chart showing the distribution of count values per stratum. The crossbar is the stratum mean and a 95% t interval for it; a stratum with one sampled day has no interval.

Both variants colour bars/points by stratum for easy differentiation.

Usage

plot_design(design, title = NULL, ...)

Arguments

design: A creel_design object created by creel_design().
title: Optional character title. Defaults to "Creel Design Summary" (no counts) or "Count Distribution by Stratum" (with counts).
...: Additional arguments (currently ignored).

Value

A ggplot object.

See also

creel_design(), autoplot.creel_schedule()

Other "Visualisation": autoplot.creel_estimates(), autoplot.creel_length_distribution(), autoplot.creel_schedule(), creel_palette(), theme_creel()

Examples

data(example_calendar)
data(example_counts)

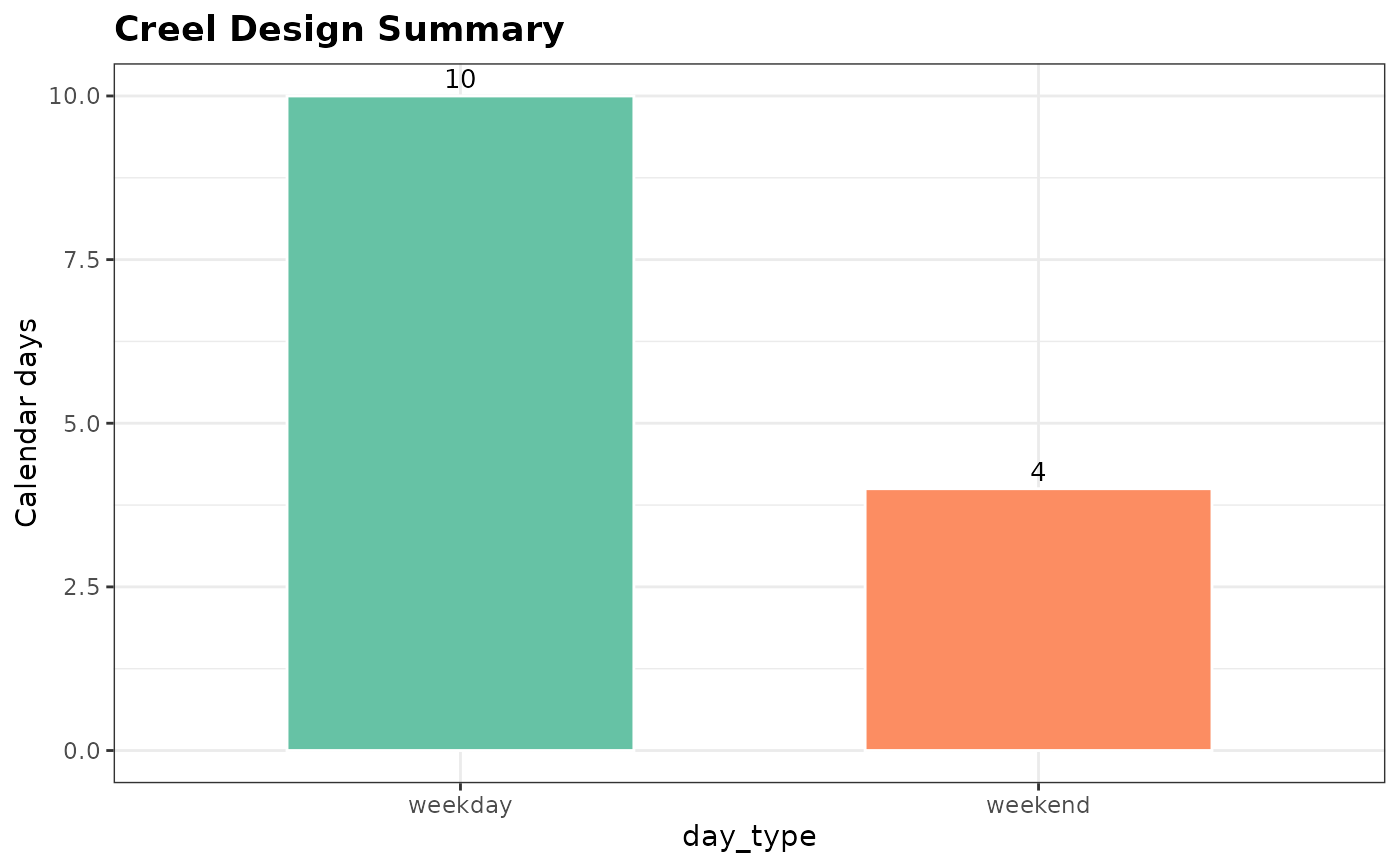

# Without counts — stratum sample sizes
design <- creel_design(example_calendar, date = date, strata = day_type)
plot_design(design)

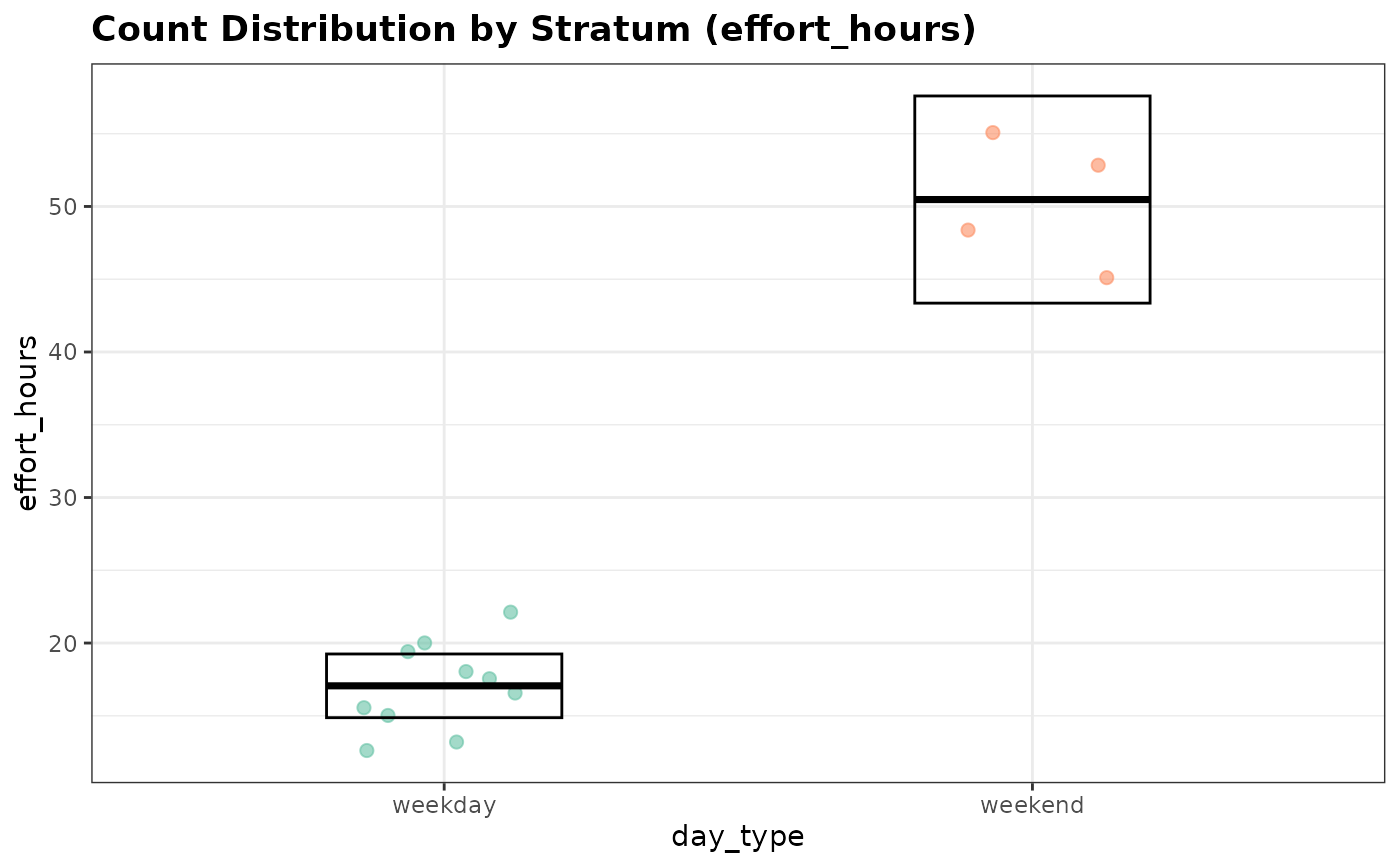

# With counts — count distribution per stratum
design_with_counts <- add_counts(design, example_counts)
plot_design(design_with_counts)
